16 Segmentli Balandligi Sifatli Segmentli Kanca kommutator armatura

Dvigatel kommutatori bitta o'zgaruvchan tok dvigateliga mos keladi. NIDE kommutatori keng diapazonni, 1200 dan ortiq turli xil turdagi kommutatorlarni, jumladan, kanca turi, ko'taruvchi turi, qobiq turi, planar turi, OD 4 mm dan OD 150 mm gacha. Kommutatorlar avtomobilsozlik sanoati, elektr asboblari, maishiy texnika va boshqa motorlarda keng qo'llaniladi.Siz fabrikamızdan Single Motor Commutator For AC Motor sotib olishingizga ishonch hosil qilishingiz mumkin va biz sizga sotishdan keyingi eng yaxshi xizmat va o'z vaqtida yetkazib berishni taklif qilamiz.

So'rov yuborish

Mahsulot tavsifi

AC vosita uchun bitta motorli kommutator

1.Mahsulotga kirish

AC dvigateli uchun yagona motorli kommutator sirtda pufakchalar, yoriqlar va burmalardan xoli.

Kuchlanish testi: 500V da novda, 1s, 1500V da novda, 1 min, buzilmasdan yoki miltillamasdan.

Spin testi: 140 santigrat, 5000 rpm, 3 minut ostida kommutator uchun aylanish sinovini o'tkazing. Sinovdan so'ng tashqi diametrning maksimal og'ishi 0,015, bar va novda 0,005 ni tashkil qiladi.

Izolyatsiya qarshiligi: 500V, 50MÎ© dan ortiq

2.Mahsulot parametri (spetsifikatsiyasi)

Qism raqami	O.D (D)	ID (d)	Jami O D (D1)	Bar raqami(N)	Bar uzunligi (L1)	Umumiy uzunlik (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Mahsulot xususiyati va qo'llanilishi

Ushbu kommutator AC motorida, bir fazali dvigatelda, avtomobil motorlarida, mototsikl start motorlarida, elektr asbob motorlarida va mikro maxsus motorlarda qo'llaniladi.

4.Mahsulot tafsilotlari

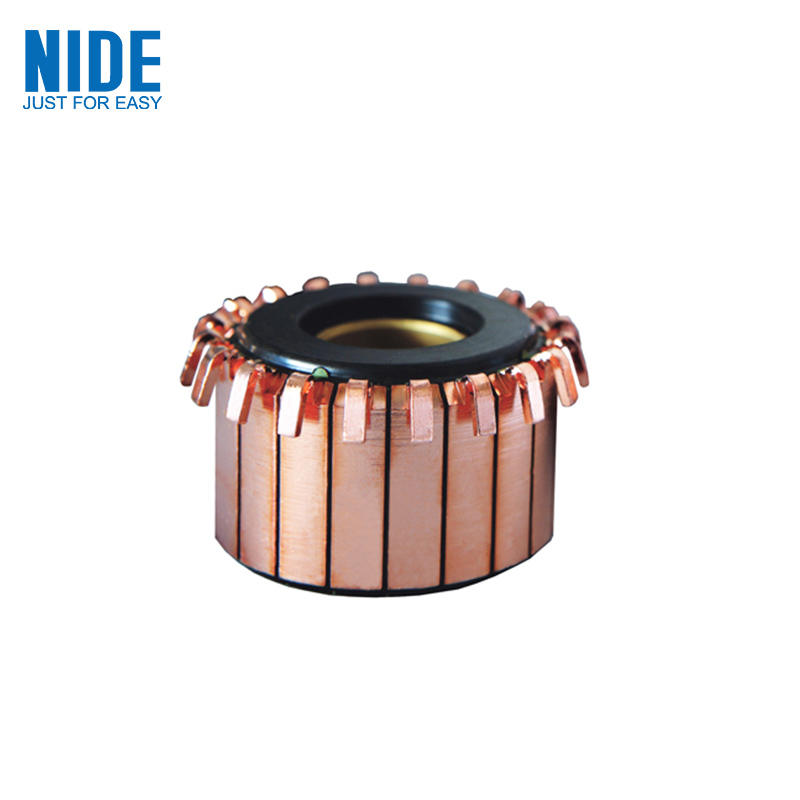

AC vosita uchun bitta motorli kommutator
